Add a background model to your fit

Most of the time, the X-ray spectrum is extracted around the source, and an additional spectrum is extracted further away to get a representative X-ray background in the vicinity of your observation. With jaxspec, this spectrum is automatically loaded as long as it is defined in the header of your observation.

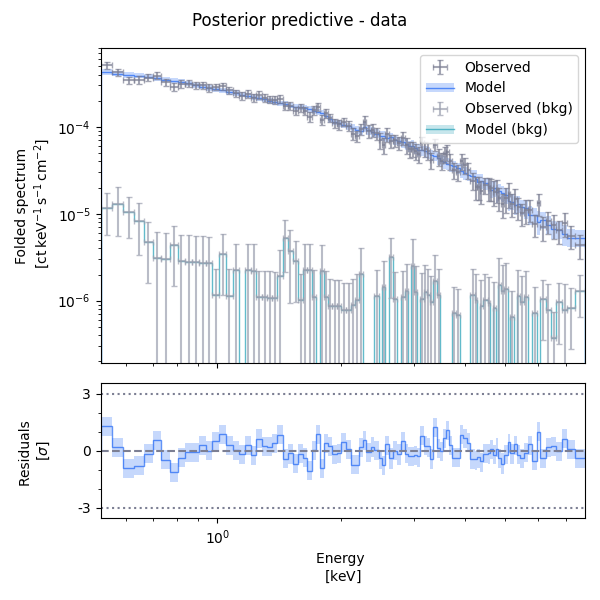

To include this in your spectral fitting, you should add a BackgroundModel to your code as follows. The simplest approach is equivalent to subtract the background to the observed spectrum when performing the fit.

from jaxspec.model.background import SubtractedBackground

fitter = MCMCFitter(model, prior, obs, background_model=SubtractedBackground())
result_bkg_substracted = fitter.fit(num_chains=16, num_warmup=1000, num_samples=5000, mcmc_kwargs={"progress_bar": True})

result_bkg_substracted.plot_ppc()

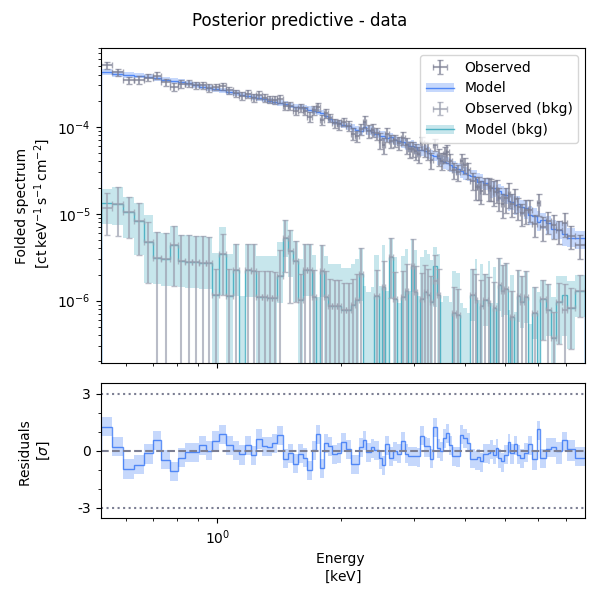

The SubtractedBackground simply account for the observed counts without propagating any kind of dispersion, which is clearly bad when we want to get spectral parameters with a comprehensive error budget. The simplest way to deal with it is to consider each background bin as a Poisson realisation of a counting process, which is achieved here using BackgroundWithError.

from jaxspec.model.background import BackgroundWithError

fitter = MCMCFitter(model, prior, obs, background_model=BackgroundWithError())
result_bkg_with_spread = fitter.fit(num_chains=16, num_warmup=1000, num_samples=5000, mcmc_kwargs={"progress_bar": True})

result_bkg_with_spread.plot_ppc()

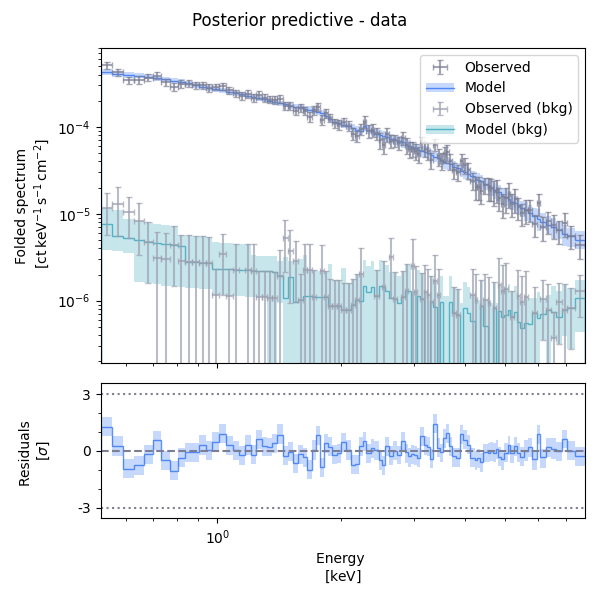

The other way to deal with this is to directly fit a Gaussian process on the folded background spectrum to integrate energy and bins correlations in a very empiric way. This can be done using a GaussianProcessBackground. The number of nodes will drive the flexibility of the Gaussian process, and it should always be lower than the number of channels.

from jaxspec.model.background import GaussianProcessBackground

forward = MCMCFitter(model, prior, obs, background_model=GaussianProcessBackground(e_min=0.3, e_max=8, n_nodes=20))
result_bkg_gp = forward.fit(num_chains=16, num_warmup=1000, num_samples=5000, mcmc_kwargs={"progress_bar": True})

result_bkg_gp.plot_ppc()

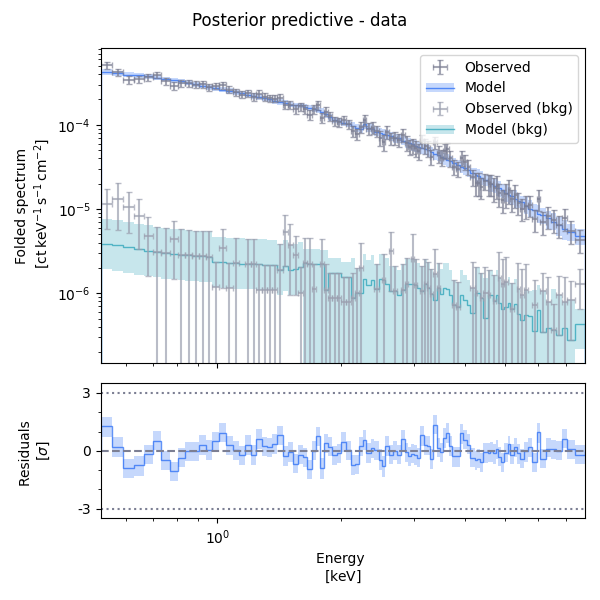

This is also possible to use a spectral model that will be folded within the instrument background using a SpectralModelBackground.

from jaxspec.model.background import SpectralModelBackground

spectral_model_background = Powerlaw()
background_prior = {
    "powerlaw_1_alpha": dist.Uniform(0, 5),
    "powerlaw_1_norm": dist.LogUniform(1e-8, 1e-3),
}

forward = MCMCFitter(model, prior, obs, background_model=SpectralModelBackground(spectral_model_background, background_prior))
result_bkg_spectral = forward.fit(num_chains=16, num_warmup=1000, num_samples=5000, mcmc_kwargs={"progress_bar": True})

result_bkg_spectral.plot_ppc()

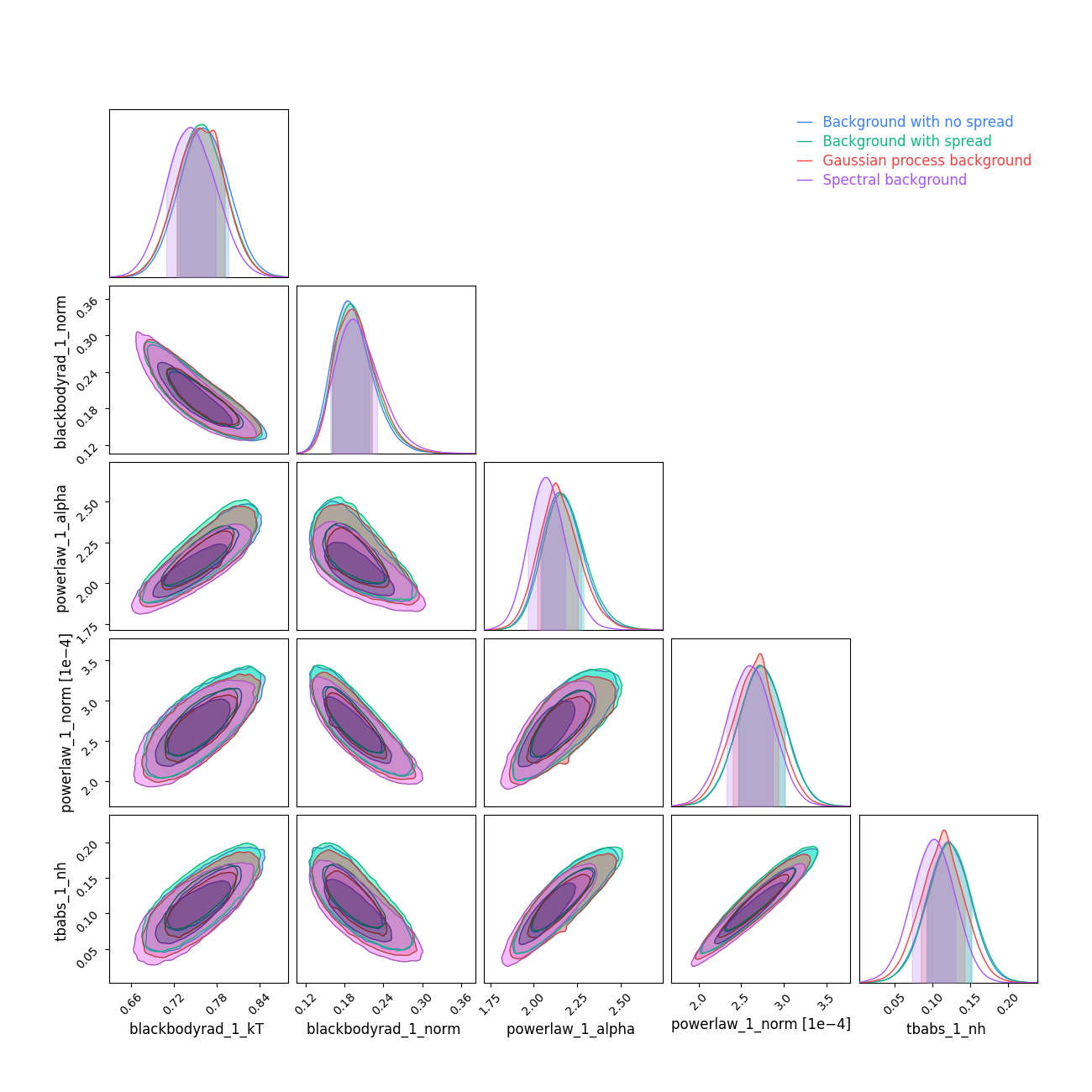

We can compare the results for all these background models using the plot_corner_comparison function.

from jaxspec.analysis.compare import plot_corner_comparison

plot_corner_comparison(
    {
        "Background with no spread" : result_bkg_substracted,
        "Background with spread" : result_bkg_with_spread,
        "Gaussian process background" : result_bkg_gp,
        "Spectral background" : result_bkg_spectral
    }
)
